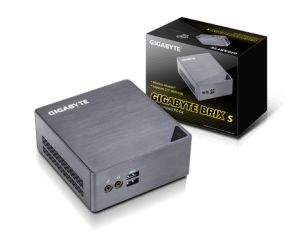

Gigabyte GB-BSi7H-6500 (Rev. 1.0) BRIX/Ultra Compact PC Kit
  • Core i7-6500U(2.50GHz, 3.10GHz Turbo), 2xSO-DIMM DDR3L, 1xM.2, 1xPCI-E M.2, Intel HD, Audio, USB3.0, WiFi, GigLAN, NO O/S

IMG 1 of 1
No Longer Available
Part Number:
403289
(?) Brand:
Gigabyte Web Site
Manuf No:
GB-BSI7H-6500
GBBSI7H6500
Shipping Weight:
4 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
GBBSI7H6500, GB-BSI7H-6500, SYGBSI7H6500, SYG-BSI7H-6500, 4719331251758
GB-BSi7H-6500 (rev. 1.0)

BRIX / Ultra Compact PC kit

Overview

* Product may vary based on local distribution.
  • Features Latest Intel® 6th generation Core Processors
  • Ultra compact PC design at only 0.6L (46.8 x 112.6 x 119.4mm)
  • Supports 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
  • 1 x M.2 SSD (2280) slot
  • 2 x SO-DIMM DDR3L slot (1600 MHz)
  • Intel® IEEE 802.11 ac ,Dual Band Wi-Fi & Bluetooth 4.2 NGFF M.2 card
  • HDMI plus Mini DisplayPort Outputs (Supports dual displays)
  • Intel® HD Graphics 520
  • 4 x USB 3.0
  • Intel Gigabit lan
  • Handset and Microphone jack
  • VESA mounting Bracket (75 x 75mm + 100 x 100mm)
    • * Wireless module inclusion may vary based on local distribution.

Redefining the Desktop PC

Challenging the essence of how we define a desktop PC, GIGABYTE engineers have developed an ultra compact PC with a stylish glass surface chassis design. Ideal for a broad range of computing applications at home or in the office, the BRIX expounds sheer simplicity and convenience. With a broad choice of processors covering the entire performance spectrum, the BRIX sets a new standard for desktop miniaturization that makes it perfect as a discreet HTPC/multimedia hub, an ultra-low power PC for the family, an office PC or as a digital signage unit.

Dual Display

With support for HDMI and DisplayPort, the BRIX can power two displays simultaneously, making a perfect choice as a high productivity PC in professional and home environments, or in any number of industrial and commercial multi-display applications.

Flexible Compact PC Kit

The BRIX is sold as a DIY PC kit, shipping with a NGFF M.2 Wi-Fi module pre-installed, plus a power adapter and cable conforming to local standards. Requiring only system memory and M.2 SSD, the BRIX gives users the flexibility to independently choose integrated storage and system memory size, without the trouble of sourcing components that are not widely available on the retail market.

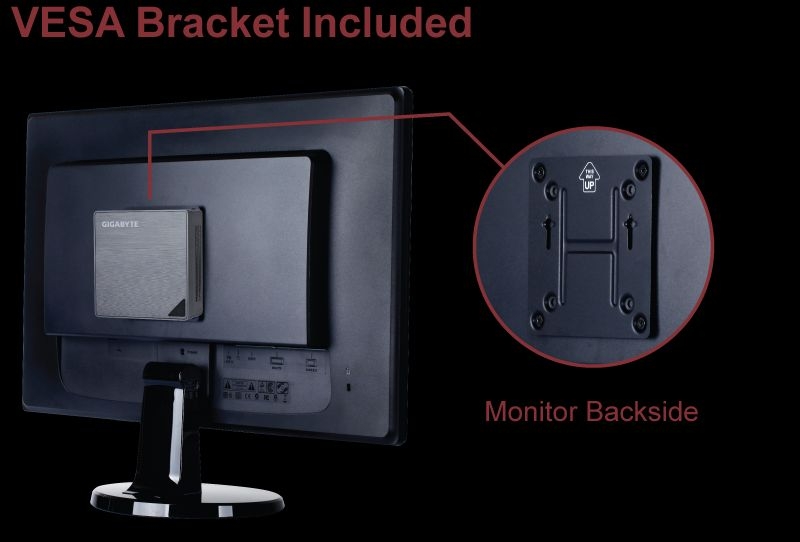

VESA Support

Bundled with a VESA bracket, the BRIX can easily be mounted behind a monitor or HDTV making it discreetly hidden from view. This makes it simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.

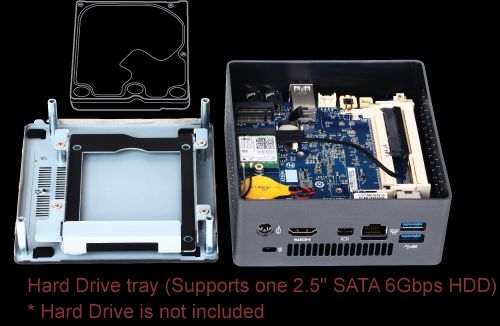

2.5” SATA Hard Drive Support

 Utilizing SATA III 6Gb/s high speed data transfer technology, the GIGABYTE BRIX s supports the installation of one 2.5” SATA hard drive and one M.2 SSD module. This allows for optimized storage configurations which combine fast SSD performance with larger capacity hard drives.







Specifications

Dimension46.8 mm x 112.6 mm x 119.4 mm (1.84" x 4.43" x 4.7")
Motherboard Size105 x 110 mm
CPUIntel® Core™ i7-6500U
2.5GHz / 3.1GHz
Memory2 x SO-DIMM DDR3L slots (DDR3 1.35V)
1600MHz
Max. 16GB
LANGigabit LAN (Intel i219V)
AudioRealtek ALC255
GraphicsIntel® HD Graphics 520
HDMI Resolution (Max.)4096x2160 @ 24Hz
Mini DP Resolution (Max.)3840x2160 @ 60Hz

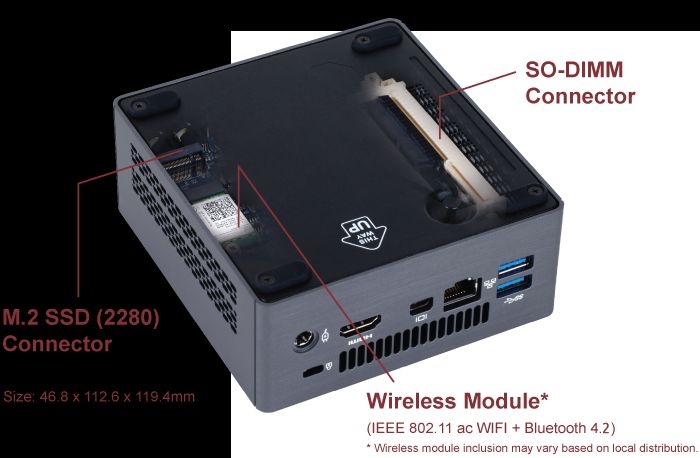

Expansion Slots1 x M.2 slot (2280_storage)
1 x PCIe M.2 NGFF 2230 A-E key slot occupied by the WiFi+BT card

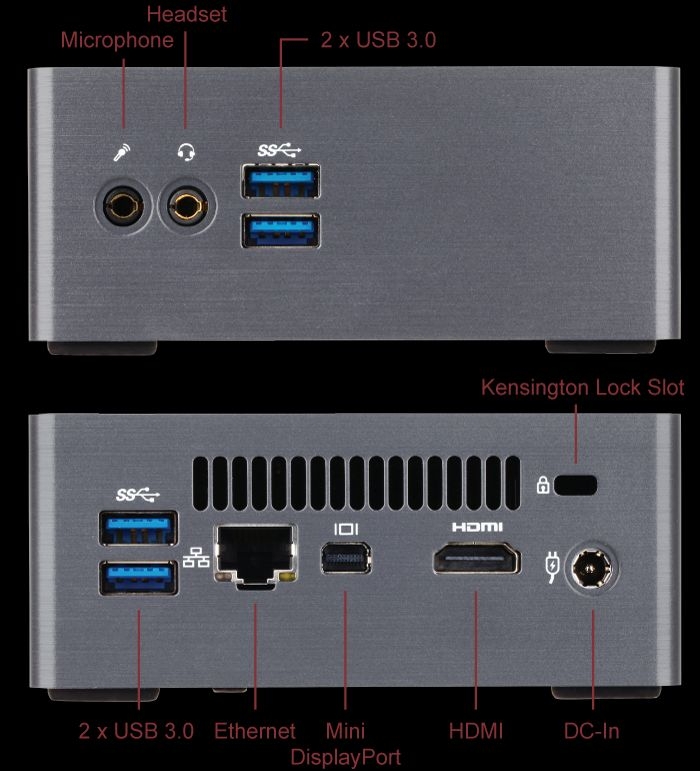

Front I/O2 x USB 3.0
1 x head phone Jack
1 x Mic phone Jack
Rear I/O1 x HDMI (1.4a)
1 x Mini DisplayPort (1.2)
2 x USB 3.0
1 x RJ45
1 x DC-In
1 x Kensington lock slot
Power SupplyInput: AC 100-240V
Output: DC 19V
3.42A
VESABracket included
Supports 75 x 75 and 100 x 100 mm
Wifi CardIntel® Dual Band Wireless-AC 3165
StorageSuppoort 2.5” HDD/SSD, 7.0/9.5 mm thick (1 x 6 Gbps SATA 3)
Support OSWIN7 32/64bit
WIN8.1 64bit
WIN10 64bit
EnvironmentSystem Environment Operating Temperature: 0°C to +35°C
System Storage Temperature: -20°C to +60°C



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (Gigabyte) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
